Advanced Treatment Systems

Precast
Concrete

BioMicrobics FAST Systems

Innovative Ideas, Proven Products

With an immediate adoption of clean waste processing technologies and development of better infrastructure to protect water resources around the world, Bio-Microbics FAST® technologies provide solutions for septic system rejuvenation to small municipal wastewater treatment systems. We strive for excellence in environmental protection and ensure that all our water solutions – are made with the environment in mind.

Microbial growth even in low/average/peak usage
Increases settleabilty and eliminates sludge bulking
Easy to maintain and extraordinarily reliable
Exceeds minimum Nitrogen Reduction Standards
Lessen the impact of harmful bacteria and viruses
Takes all aspects of the treatment into consideration

Unobtrusive and dependable, the FAST® system handles smaller, variable flows generated from onsite applications. The clean effluent prevents biomat formation and leachfield clogging. This septic technology is very compatible with shallow drip, direct discharge, pressure distribution, spray irrigation, and
conventional leachfield.

The Bio-Microbics FAST® systems provide significantly improved nitrification/denitrification performance over traditional systems and exceeding typical effluent requirements for wastewater recycling opportunities or reducing the size of the leach field with less aesthetic disturbance of property value or system components. Offering versatility and consistent high performance, the FAST® are also a favorite on marine vessels and offshore platforms of all types to produce high-quality effluent, specifically designed for extreme environments.

Various Applications

Bio-Microbics FAST® wastewater treatment systems provide alternative options for properties residing outside the reach of municipal (public) treatment plants. Engineered to fit most typical residential and commercial applications, FAST® systems can be used for new construction or retrofit in existing tanks; including those in nitrogen sensitive areas or limitations with distance to groundwater and/or smaller dispersal field size requirements. Scientifically-proven, advanced, self-contained wastewater treatment systems, the process contains no internal in-sewage moving parts. The Bio- Microbics FAST® systems use only active naturally occurring microorganisms to transform sewage wastewater to be cleaner than natural surface fresh water sources and protects family health, dwellings, property values and freshwater sources.

How Does the FAST® System Work?

Wastewater enters the treatment systemNatural separation and settling processes occur in the primary settling zone. In the primary settling zone for most large residential and commercial applications, a SaniTEE® device is used to prevent large solids from entering the treatment zone. A remote, above-ground blower introduces air (oxygen) into the treatment module to facilitate a robust circulation of wastewater through the media’s channeled flow path. Bacteria in the aeration zone become “fixed” or attached to the stationary media. This is where the abundant, diverse, self-regulating population of microbes consistently metabolizes the incoming waste. Clear, odorless, treated water is ready for standard or innovative dispersal.

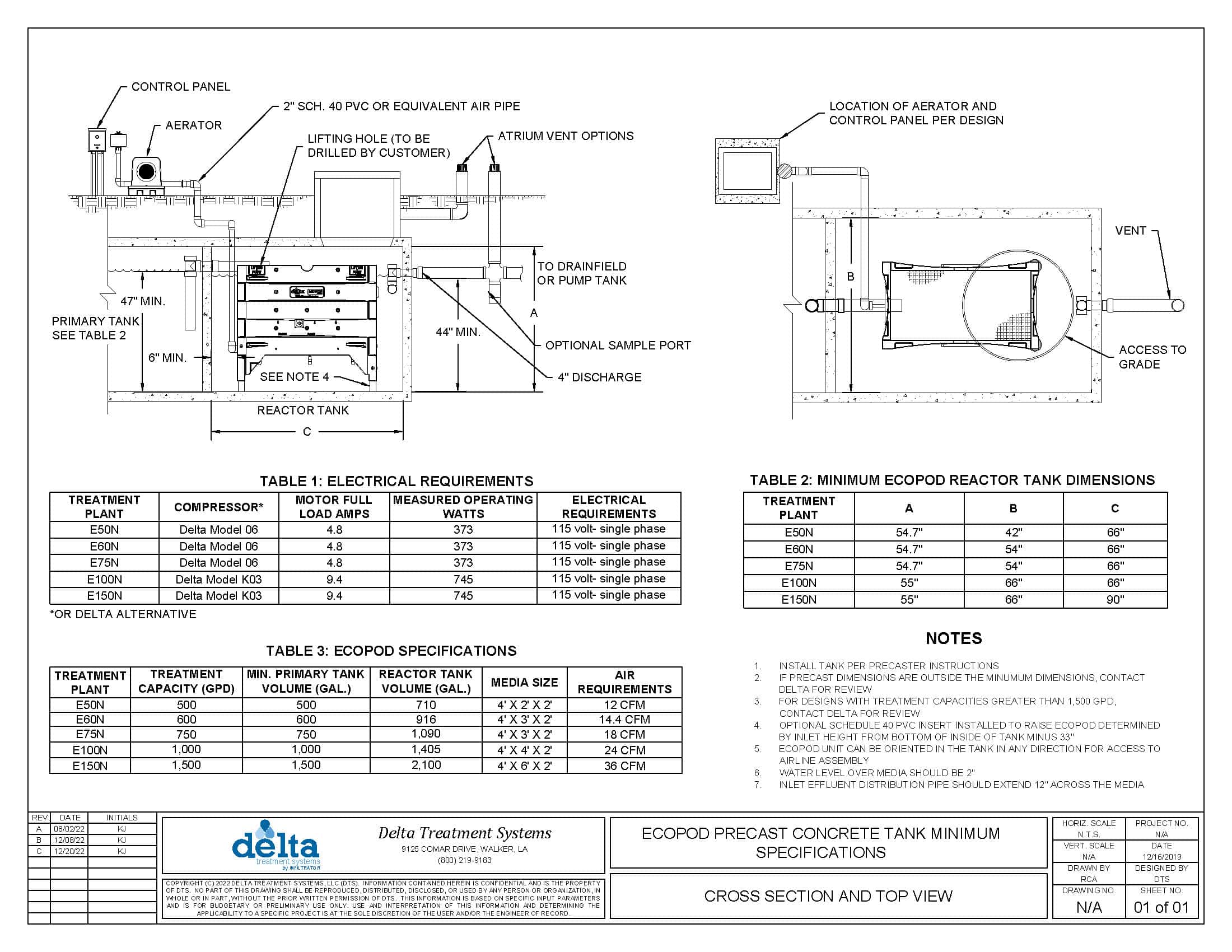

ECOPOD Systems

Features

Oxygen is pumped into the system allowing the bacteria thrive and grow in much greater numbers than would occur naturally. This “overpopulation” of bacteria speeds the process of breaking down the sewage, making it safe for release into the environment.
ECOPOD Units significantly reduce BOD, TSS, fecal coliform, and nutrients in the wastewater.
Nitrification and denitrification occur in a single tank.
Features a fixed film process which is characteristically stable, reliable, and sturdy. Fixed film is a preferred treatment process for onsite wastewater treatment systems.

Benefits

The fixed film process provides a robust solution suitable for continuous or intermittent use
Flexible and easy installations in tanks we supply or in 3rd party tanks
Flexible design approach provides for plants to be installed below, above or at-grade
With no mechanical parts internal to the unit, the ECOPOD is easy to maintain
Designed specifically to minimize sludge production for fewer pump-out cycles
Low life cycle costs with minimal maintenance requirements
Support through a dedicated team of engineers who act like an extension of your own team
Wide range of solutions from 500 to 250,000 GPD

HOOT Systems

Wieser Concrete H-Series Gravity Treatment System

GREEN CHOICE APPLICATIONS

Single and Multi-Family Dwellings, light commercial, Churches, and other similar Residential strength uses.

PERFORMANCE

98% Reduction CBOD5
99% Reduction TSS
99% Conversion of Ammonia (NH3)
Fecal <1,000 w/o disinfection

RANGE OF SIZES

500, 600, 750 & 1000 GPD

HIGH PERFORMANCE, LOW COST, ENERGY EFFICIENT TREATMENT SYSTEM

The H-Series Gravity Treatment System provides high performance at a price comparable to most entry-level ATU’s. Producing effluent of less than 3 mg/L on CBOD5 and 2 mg/L on TSS, it far exceeds the secondary standards of 25 mg/L on CBOD5 and 30 mg/L on TSS. With these results, many locations allow reductions in disposal areas between 25 and 40%. Because the H-Series completely transforms ammonia into nitrate, it is best suited for applications with rich organic soil content, surface plant growth and depth to groundwater to prevent nitrogen pollution of the water table.

SIMPLE INSTALLATION, RELIABLE PERFORMANCE, LOW COST OF OWNERSHIP

This level of performance is enhanced by its simple installation, energy-efficient performance and low-cost long-term maintenance and ownership. The system’s components are assembled at controlled manufacturing facilities, rather than in the field, to ensure reliable performance with local support.

ENERGY EFFICIENT, ENVIRONMENTAL PROTECTION

With gravity flow discharge, the H-Series allows you to choose your disposal application from conventional lateral lines, leaching chambers, other alternative drainfield materials. In some areas, direct discharge is an option as well. Reductions of vertical separations to groundwater and impermeable layers such as rock range from 1 to 2 feet.

MAKE THE GREEN CHOICE FOR WASTEWATER TREATMENT

Your wastewater system is the most expensive and important appliance you will ever purchase. Don’t settle for just any system. Protect your family and the environment with a Hoot H-Series System.
